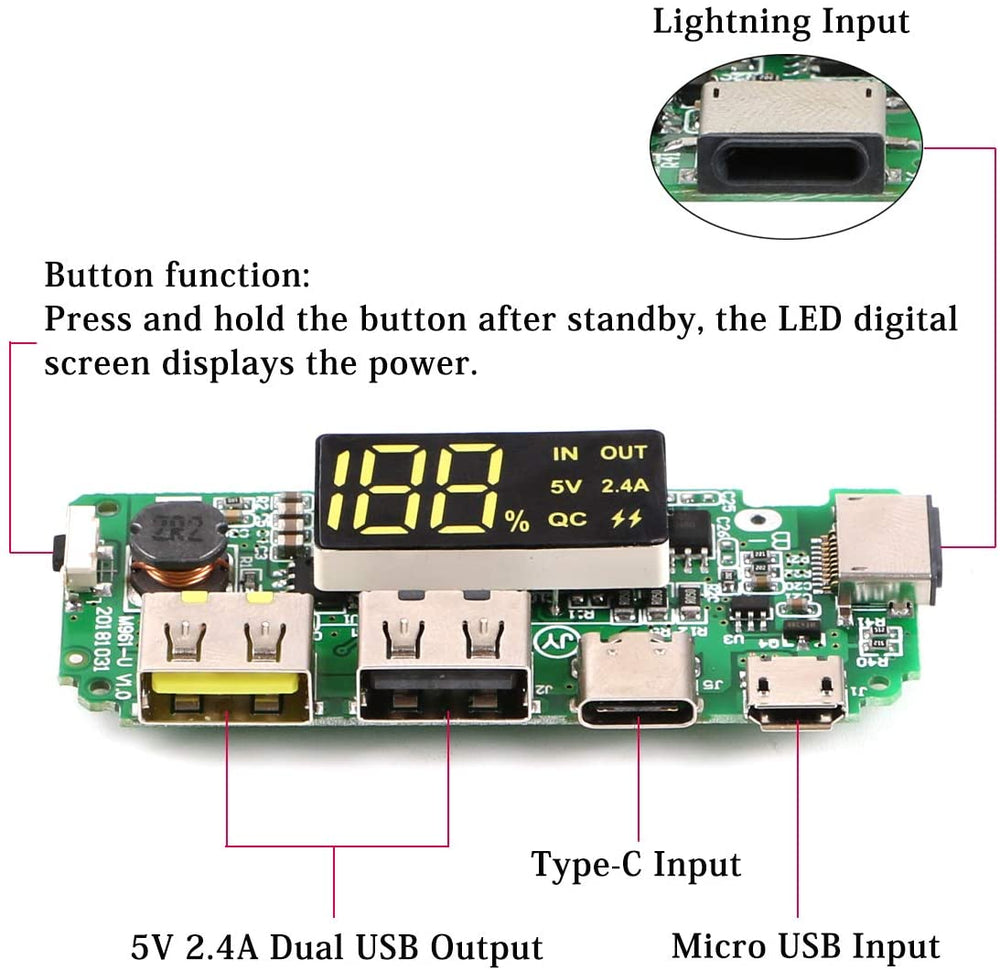

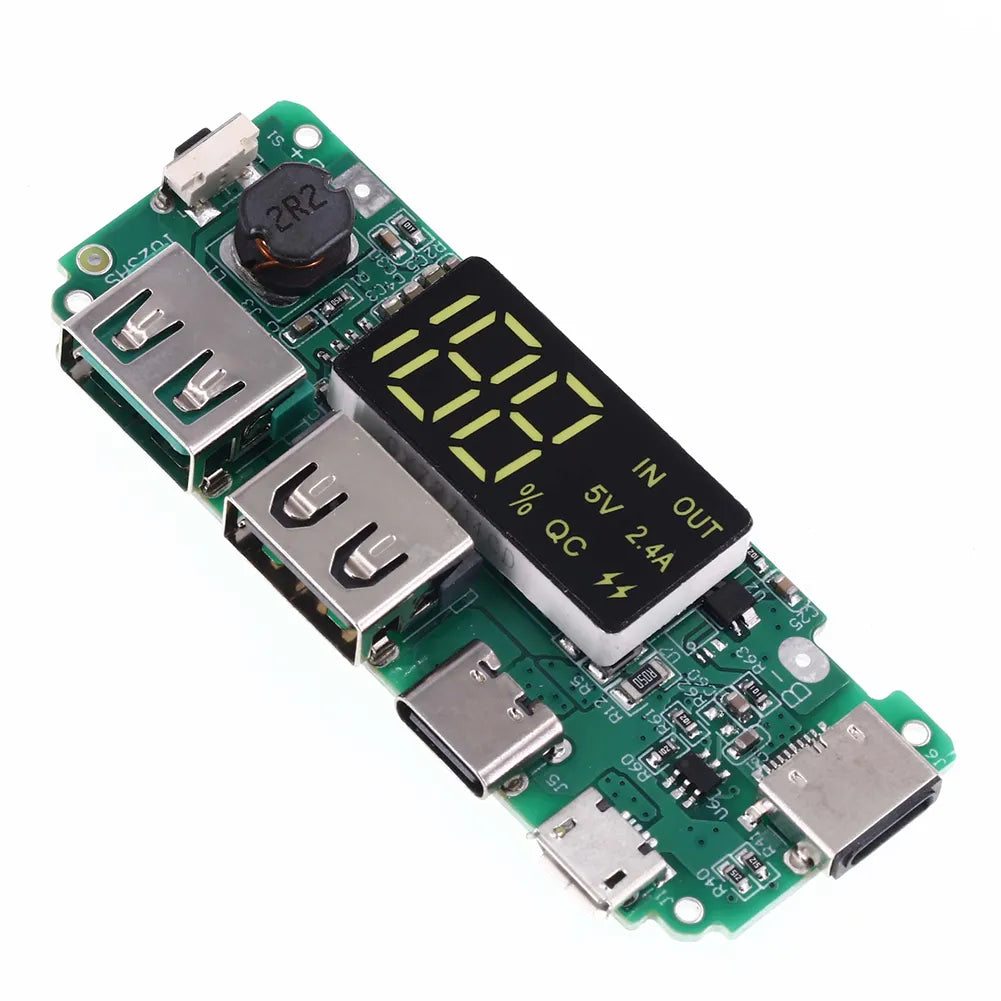

5V 2.4A Dual USB + Type-C + Micro + Lightning USB Power Bank With LED Display 18650 Charger Board

Features

• Constant Current: 2.4 A
• Dual Output Current: 5V 2.4 A
• Input Voltage B+ to B-: 0 - 0.2V
• Charging Cable: Support iPhone and android three USB Cables

• Prevent Overcharge Protection:
  • Detection Voltage: 20±0.05V
  • Release Voltage: 100±0.05V
  • Detection Delay time: <200 ms

• Prevent Over-discharge Protection:
  • Detection Voltage: 0±0.10V
  • Release Voltage: 10±0.10V
  • Detection Delay Time: <100 ms

• Short Circuit Protection:
  • Short Detection Delay time: <50 uS
  • Release Conditions: Cut offload

• Normal Current Consumption:
  • Normal Current Consumption of PCM: Max 0uA
  • Standby Current Consumption: Max 50uA

• Suggest Working Conditions:
  • Max Continuous Charge/discharge Current: 1.5/2.5 A
  • Suggest Working Temperature: -5～5℃

• The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
• This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.
• Protection: overcharge protection, overdischarge protection, short circuit protection, constant current.
• Charging cable: support three USB data cable charging, including Iphone and Android.

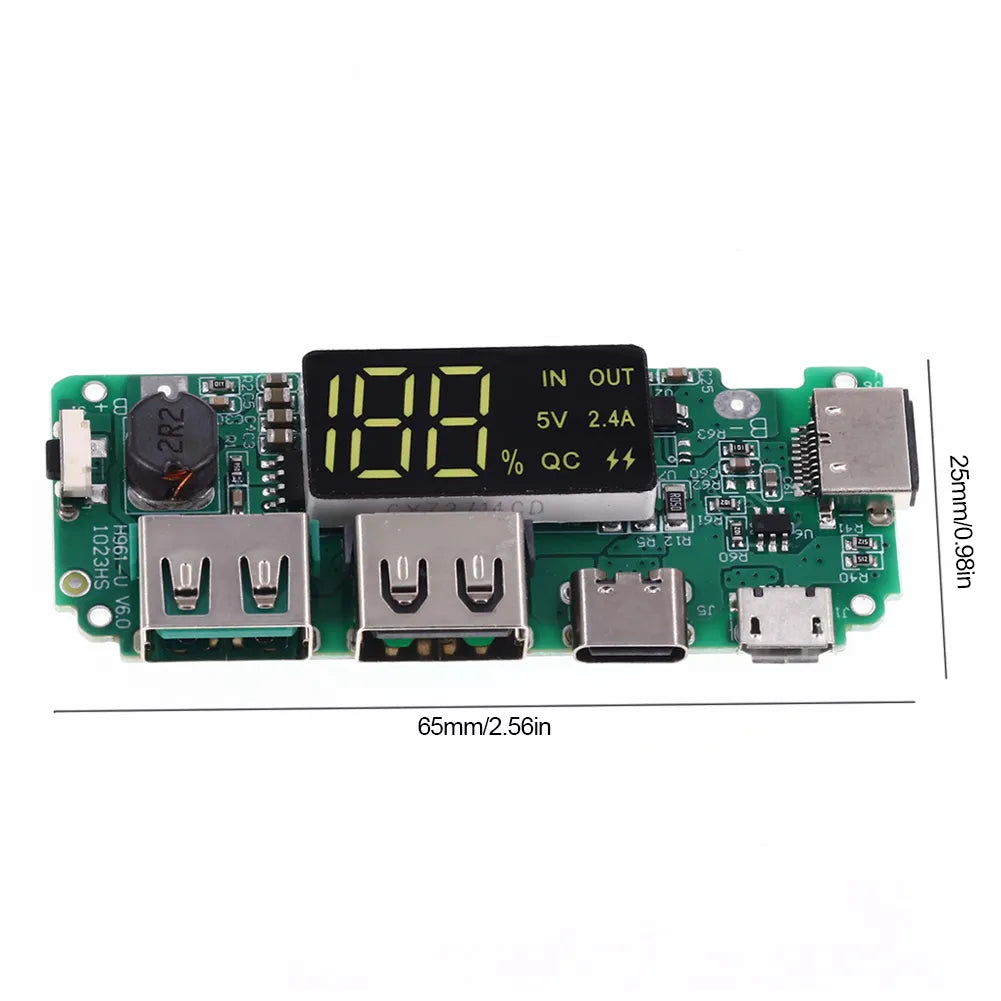

• Size: 6.5 * 2.5 * 0.1cm; Dual output current: 5V 2.4A; Input voltage B+ to B-: 3.0 - 4.2V.

  Note: All the cells that are connected to the power bank module should be in a series, please don't connect the cells in parallel as this will damage the power back module and cause a heating issue in it and eventually the power bank module will stop working.
