Electronic Components - Diode, Inductor & Transistor
Electronic Components - Diode, Inductor & Transistor
Diode 1N4007 (1 Pc)
The 1N4007 diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. For 1N4007 Diode, the maximum current carrying capacity is 1A it withstand peaks up to...
Rs. 2.00
Rs. 1.00
2N2222 A - General Purpose Transistor - NPN
2N2222A / PN2222A General Purpose TO-92 NPN Transistor Switching & Amplification Base Voltage 5V Collector Current 0.6A Junction Temperature 150C General Purpose TO-92 NPN Transistor Switching & Amplification Collector-Base Voltage 60v Collector-Emmiter Voltage 30V Emmiter-Base Voltage 5V Collector Current 0.6A...
Rs. 10.00
Rs. 5.00

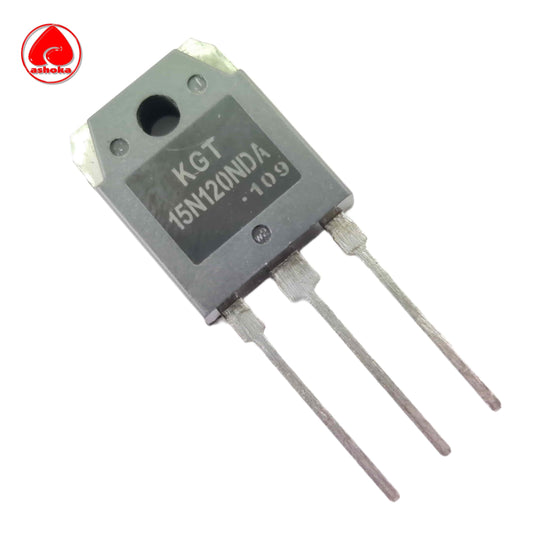

15N120 1200V NPT Trench IGBT Transistor
High Voltage IGBT with low saturation voltage Collector-Emitter Voltage (VCE): 1200V Collector Current (IC): 30A @25°C Minimum Gate threshold voltage (VGE) is 4.5V Maximum Gate threshold voltage (VGE) is 8.5V The 15N120 is a high voltage IGBT with a Collector...
Rs. 150.00
Rs. 95.00

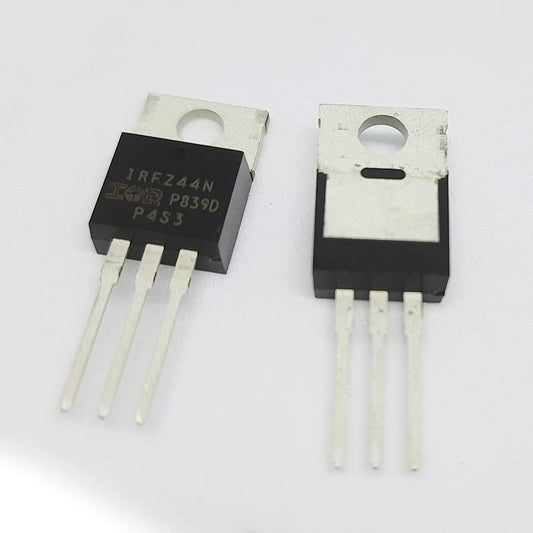

IRFZ 44 N N-Channel Power MOSFET 8A, 200 V, 3-Pin Transistor
Small signal N-Channel MOSFET Continuous Drain Current (ID) is 49A at 25°C It is commonly used with Arduino, due to its low threshold current. Maximum Drain-Source Voltage (VDS) is 55V Pulsed Drain Current (ID-peak) is 160A The IRFZ44N is a...
Rs. 40.00
Rs. 35.00
BD139 NPN TYPE GENERAL PURPOSE TRANSISTER
Application: suitable for electronic enthusiasts, repair, design, TV set, power supply, chargers, electronic toys. Transistor is a basic semiconductor device that control current, which can also be used as a non-contact switch. The transistors are silicone planar epitaxial NPN type...
Rs. 15.00
Rs. 10.00
BC548 NPN Silicon Transistor
NPN Silicon Transistor.
General purpose transister .--This device is silicon NPN small signal transistor, manufactured by the epitaxial planar process, designed for general purpose amplifier applications.
Rs. 4.00
Rs. 2.00
1N4148 Small Signal Fast Switching Diodes
Repetitive Peak Reverse Voltage: 100 V Reverse Voltage: 75V Peak forward Surge Current: 2A Repetitive Peak Forward Current: 500 mA Forward Continuous Current: 300 mA Average Forward Current: 150 mA Silicon Epitaxial Planar Diode Power dissipation; l = 4 mm,...
Rs. 5.00
Rs. 2.00

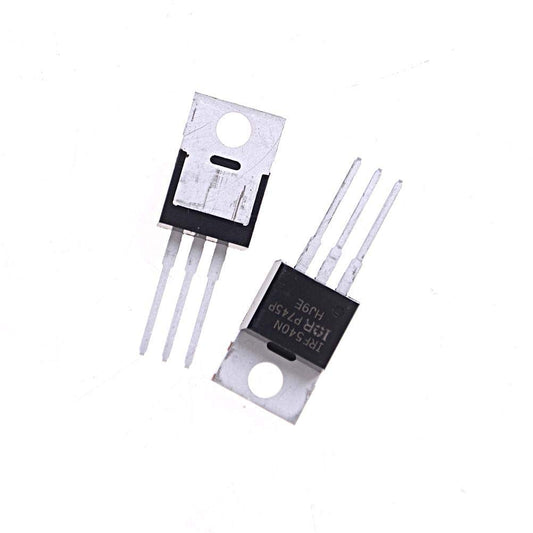

IRF540 N MOSFET Transistor N Channel HEXFET Power MOSFET
Part No: IRF540 Drain to Source Voltage (Vdss): 100 V Current – Continuous Drain (Id) @ 25°C: 33A (Tc) Drive Voltage (Max Rds On, Min Rds On): 10V Rds On (Max) @ Id, Vgs: 44mOhm @ 16A, 10V Vgs(th) (Max)...
Rs. 50.00
Rs. 29.00

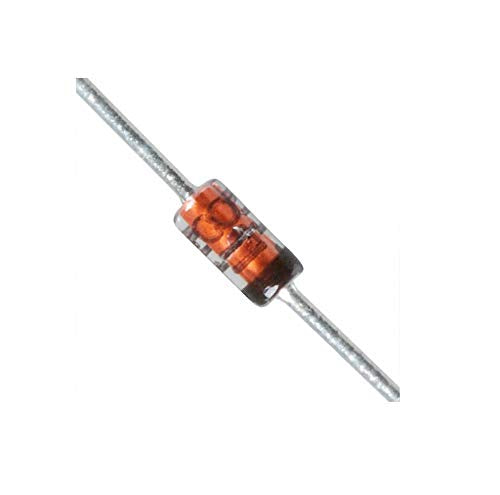

1N60 Germanium Diode
The 1N60 Germanium Diode is a point contact diode employing N-from Germanium and gives an efficient and excellent linearity when used in TV image detection, FM detection, radio, AM detection, etc. Features:- • Metal silicon junction, majority carrier conduction • High current...
Rs. 15.00
Rs. 7.00
OA79 Germanium Diode
Continuous reverse voltage(VR) : max 30 volts Forward current(d.c)(If) : max 35mA Operating Ambient Temperature(Tamb) : -50 to +60 °C Rep Pk Reverse Voltage-Max : 40.0 Volts Repetitive Peak reverse voltage(VRRM) : max 45 volts--Germanium contact point high-frequency diode, intended...
Rs. 8.00

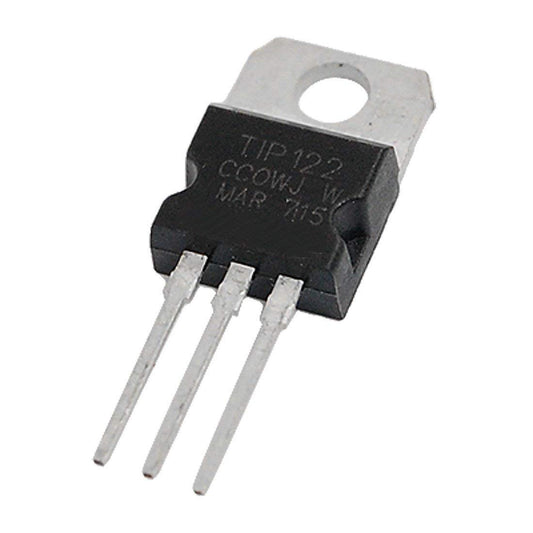

TIP122 Bipolar (BJT) Single NPN Power Darlington Transistor
Power dissipation of 65W. Operating junction temperature range from -65°C to 150°C Collector emitter saturation voltage of 2V at Ic=3A. DC current gain of 1000 at Ic=3A The TIP122 from Multicomp are through hole, darlington transistor in TO-220 package. This...
Rs. 25.00
Rs. 18.00
BC557 PNP General Purpose Transistor (1 Pc)
BC557 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one...
Rs. 5.00
Rs. 3.00
CDIL 2N3055 NPN Power Transistor
2N3055 NPN Bipolar Power Transistor Manufacturer Part No: 2N3055 Transistor Polarity: NPN Package/Case: TO-3 Low error voltage Fast switching speed Full-voltage operation High power and current handling capability 2N3055 is a semiconductor device used to amplify or switch electronic...
Rs. 100.00
Rs. 69.00
TIP41 TIP41C Bipolar NPN Single Transistor
Input Voltage: /; Output Voltage: 100V Low frequency or audio amplification (LF), power amplification (L) Minimum DC current gain (hFE) at a certain Ic, Vce: 15 @ 3A, 4V The TIP41C is a base island technology NPN Power Transistor for...
Rs. 30.00
Rs. 23.00
10mH 1/2W 0410 Color Ring Axial Lead Type Inductor
10mH 1/2W 0410 Color Ring Axial Lead Type Inductor is a small lightweight inductor. Its compact design is ideal to use in electronic devices. The inductor has a coating of epoxy resin which is resistant to humidity and thus improves the...
Rs. 15.00
Rs. 10.00
CDIL CL100 S NPN SILICON PLANAR MEDIUM POWER TRANSISTORS SL100
CL100S medium power silicon planer transistor CL100 NPN Medium Power Transistor Transistor Polarity: NPN Collector−Emitter Voltage: 50V Continuous Collector Current: 1A Emitter Base Voltage (VEBO): 5V Power Dissipation: 3Watt Operating Temperature Range: -55~175°C DC Current Gain: 20 High Ruggedness CL100...
Rs. 35.00
Rs. 20.00
12v 1/2w Zener Diode (1 Pc)
Diode to regulate voltage across the circuits.
Characteristics:
Zener Voltage Vz Typ: 12.0V Power Dissipation Pd: 1/2W Operating Temperature Min: -65°C Operating Temperature Max: 200°C No. of Pins: 2 Breakdown Voltage: 5.1V Diode Type: Zener RoHS Compliant: Yes
Rs. 5.00
Rs. 3.00
CDIL BC108 C Bipolar NPN Silicon Transistor
Maximum Collector-Base Voltage |Vcb|: 30 V Maximum Collector-Emitter Voltage |Vce|: 20 V Maximum Emitter-Base Voltage |Veb|: 5 V Max. Operating Junction Temperature (Tj): 175 °C Transition Frequency (ft): 150 MHz BC108C series types are small signal NPN silicon transistors, manufactured...
Rs. 32.00
Rs. 23.00

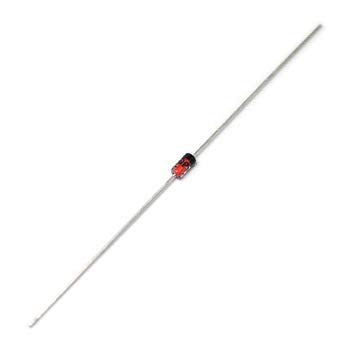

1N34 Germanium Diode
Peak Repet. Reverse Voltage (Vrrm): 45V Max. RMS Reverse Voltage (Vr): 20V Average Rectified Current (Io): 50mA Max. Forward Current (Ir): 150mA--The 1N34A Germanium diode is an old standby in electronics. Widely used for detecting the rectifying efficiency or for...
Rs. 7.00
IRF 840 / 840 MOSFET Transistor, N Channel
Application: suitable for electronic enthusiasts, repair, design, TV set, power supply, chargers, electronic toys. Transistor is a basic semiconductor device that control current, which can also be used as a non-contact switch. IRF840N MOSFET Transistor, N Channel .Application: suitable for...
Rs. 70.00
Rs. 55.00
5.1v 1/2w Zener Diode (1 Pc)
Diode to regulate voltage across the circuits.
Characteristics:
Zener Voltage Vz Typ: 5.1V Power Dissipation Pd: 1/2W Operating Temperature Min: -65°C Operating Temperature Max: 200°C No. of Pins: 2 Diode Type: Zener RoHS Compliant: Yes
Rs. 5.00
Rs. 3.00
2N6027 Programmable Unijunction Transistor 6027
2N6027 is Designed to enable the engineer to “program’’ unijunction characteristics such as RBB, IV and IP by merely selecting two resistor values. Application includes thyristor−trigger, oscillator, pulse and timing circuits. These devices may also be used in special thyristor...
Rs. 30.00
Rs. 25.00
10A Diode 10A10 1000V Silicon Rectifier Diode (1 Pc)
Features of 10A10 Rectifier Diode:- High Surge Current Capability Low leakage Low forward voltage drop High current capability Low lost Maximum Recurrent Peak Reverse Voltage VRRM 1000V Maximum RMS Voltage VRMS 700V Maximum DC Blocking Voltage VDC 1000V Operating...
Rs. 12.00
Rs. 10.00
BF245 NPN N Channel Transistor (Pack of 1)
Product Number: BF245B Base Product Number: BF245 Technology: JFET Configuration: N-Channel high input impedance and gain low cut-off voltage low leakage current (fA) suitable for impedance converters and VHF circuits BF245 in a TO-92 package has been one of the first...
Rs. 200.00
Rs. 115.00
Showing 1 - 24 of 91 total
