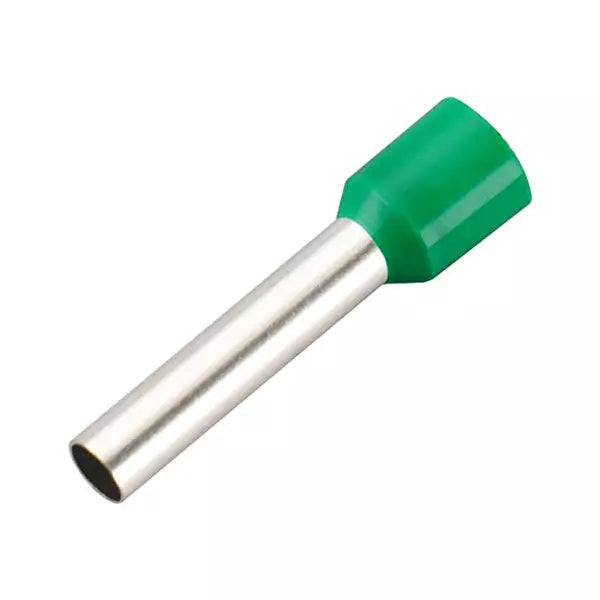

E6010 Green 6 sq mm Wire Ferrule Terminal Cable Lugs

Features/Specs:

• Part No: E6010
• Wire size: 60.0mm²x10mm
• Internal diameter: 6 mm²
• Length: 10 mm
• Maximum Voltage Rating: 600V @ 105°C
• Maximum Current Rating: 30A
• 96% of customers would recommend to a friend
• Color: Green

The E6010-Green from Multicomp Pro is an insulated cable ferrule. This cord end terminal consists of a tinned copper hollow tube with a nylon white colour insulating sleeve and conforms to DIN46228 Part 1 and 4 standards. It is designed to provide a neat end termination to multi-stranded wires. They also provide a secure connection to terminal blocks, captive terminals, and stop wire strands short circuiting to adjacent connectors.

The main advantages of wire ferrules are to make a nice, clean and secure connection to a terminal block Prevent wire strands from spreading out of a terminal possibly causing a short provides 100% contact to wire connector. Cord Pin End Terminal PVC + Copper Wire Range 20-10 A.W.G, 0.5 – 6.0 SQ Easy, Cord Pin End Terminal, Lugs, Wire lugs.

How to Crimp Cables and Wires.

Step 1: Braid the Wire. Strip the insulation off the wires if you haven’t already. Take the exposed end, and twist it between your fingers until the wires are all wound in a helix.
Step 2: Insert into Crimp. Put the wire into the crimp until it gets to a metal tab.
Step 3: rimp! Grab the crimp in your crimping tool.

Package Includes:

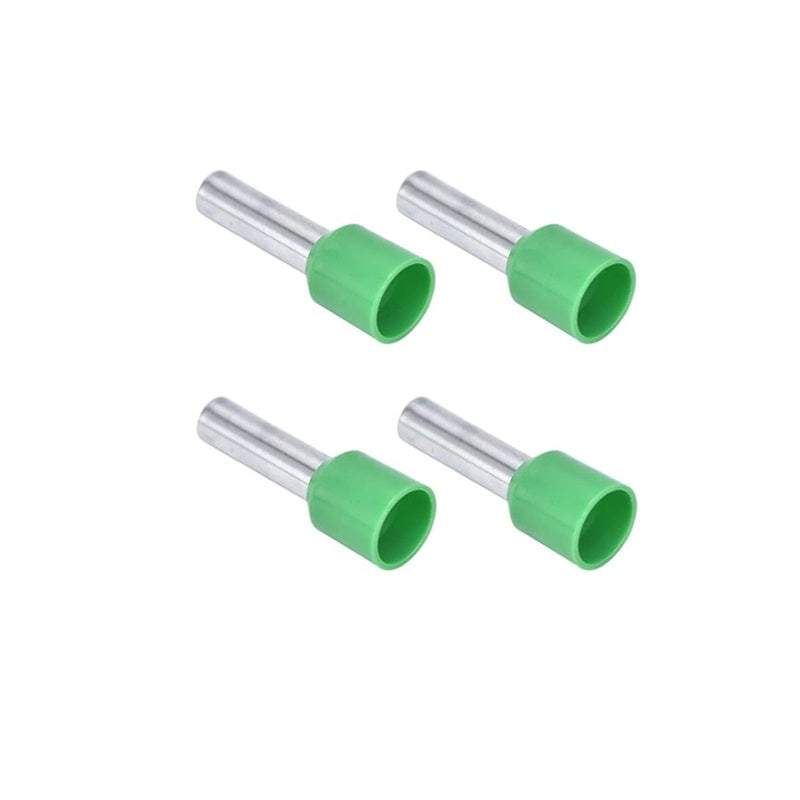

• 1 x E6010 – 6 sqr mm Wire Ferrule – Green


Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
