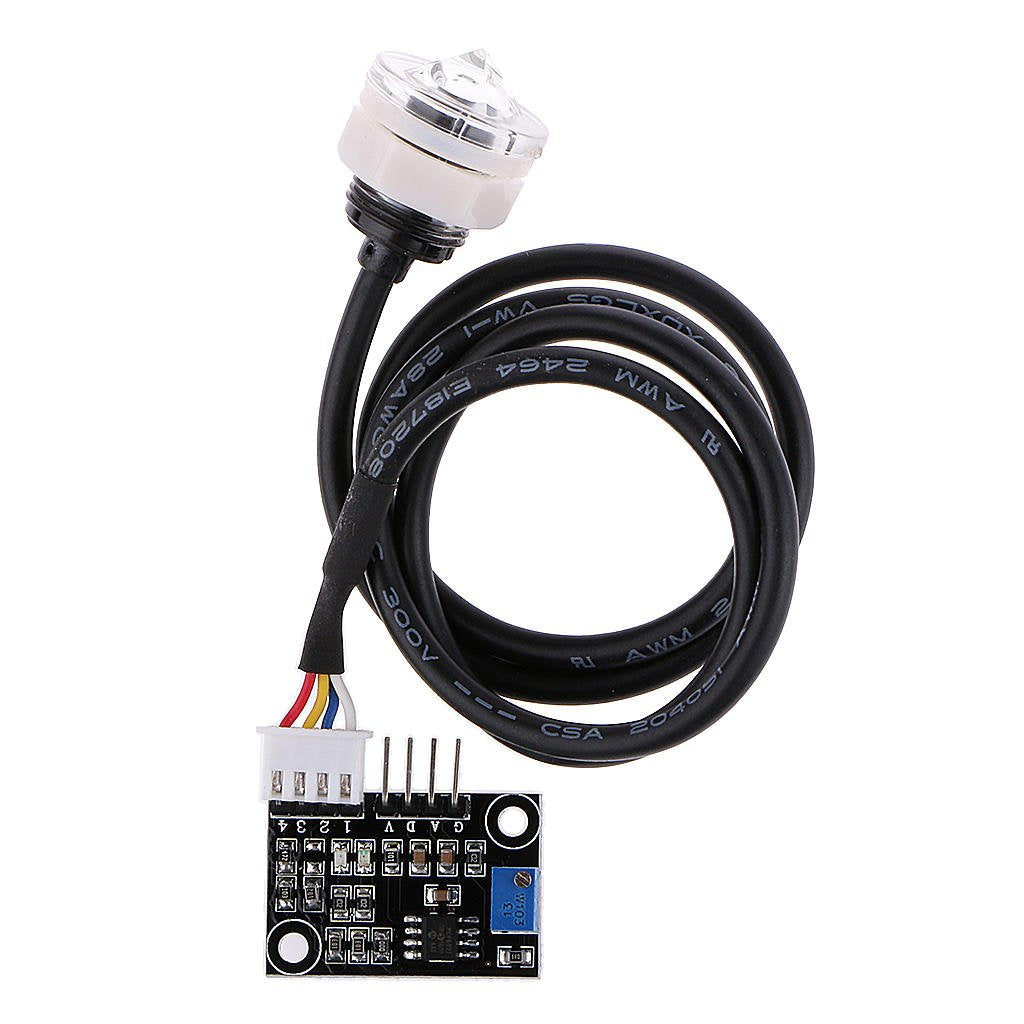

T30 Liquid Level Optical Sensor Module

TECHNICAL PARAMETERS:

• Working voltage: DC5V [special requirements can be changed to 12V/24V]
• Working current: <10MA
• Output mode: analog output 0-4.5V
• Output mode two: high / low level signal output
• Response time: <500ms
• Insulation resistance: 100M
• Working temperature: -30~80
• Working humidity: 0-100%RH
• Waterproof characteristics: all sealed waterproof design
• Installation: M15*12 round hole
• Lead length: 0.5 meters [default]
• Weight: 30g
• Size: 30mm*20mm*12mm

Liquid level sensor is using infrared optical principle, the detection of liquid level, liquid level signal through the optical transmission, conversion to electrical signals for output, voltage signal collected by the sensor for level discrimination, the sensor has the advantages of compact design, small volume, waterproof, cylindrical shape square and drilling installation; installation mode diversification can be superimposed. Under the device, lateral and oblique to the installation, sensor head smooth, easy to clean, and the accuracy is better to the float type liquid level switch, controllable accuracy within 0.5mm, and existing float type liquid level switch accuracy is + 3.0mm; ray principle, no friction mechanical moving parts and greatly increased the life

APPLICATION RANGE:

Water dispenser, water purifier, air conditioning fan, humidifier, air conditioning fan, steam class and other electrical products that require water level control and protection, as well as industrial field control level detection;

Design considerations:
