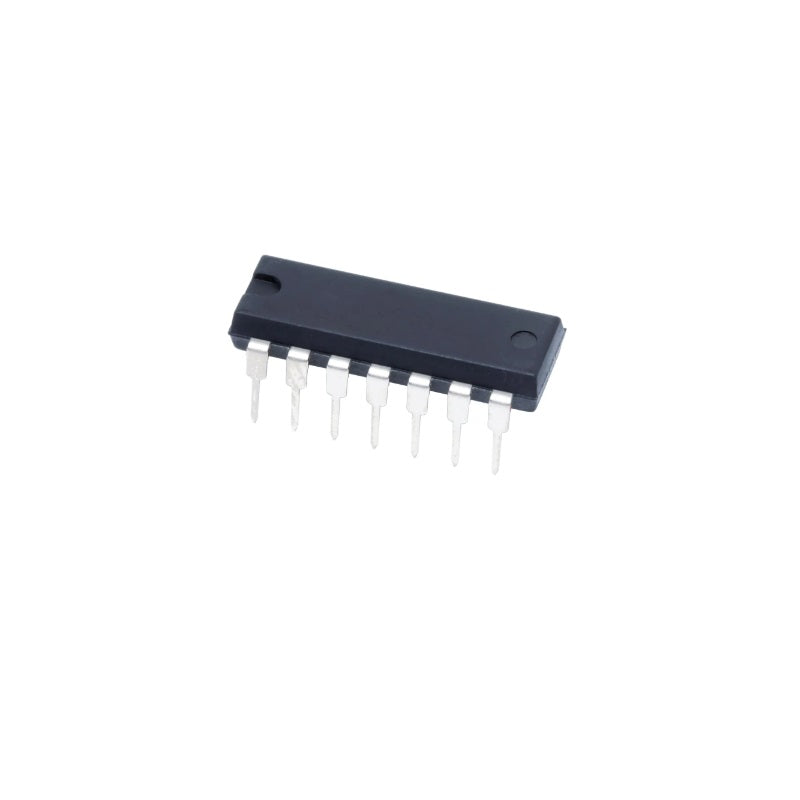

TL084 JFET Input Operational Amplifier IC – DIP-14 Package

Features:

• High slew rate: 20 V/μs (TL08xH, typ)
• Low offset voltage: 1 mV (TL08xH, typ)
• Low offset voltage drift: 2 μV/°C
• Low power consumption: 940 μA/ch (TL08xH, typ)
• Wide common-mode and differential voltage ranges
  – Common-mode input voltage range includes VCC+
• Low input bias and offset currents
• Low noise:Vn = 18 nV/√Hz (typ) at f = 1 kHz
• Output short-circuit protection
• Low total harmonic distortion: 0.003% (typ)
• Wide supply voltage: ±2.25 V to ±20 V, 4.5 V to 40 V

Features/Specs:

• Manufacturer: HLF
• Series: TL084
• Product Type: Op Amps – Operational Amplifiers
• Number of Channels: 4 Channel
• Supply Voltage – Max: 30 V
• GBP – Gain Bandwidth Product: 3 MHz
• Output Current per Channel: 10 mA
• SR – Slew Rate: 13 V/us
• Vos – Input Offset Voltage: 15 mV
• Supply Voltage – Min: 7 V
• Minimum Operating Temperature: – 40 C
• Maximum Operating Temperature: + 125 C
• Ib – Input Bias Current: 400 pA
• Operating Supply Current: 1.4 mA
• Shutdown: No Shutdown
• CMRR – Common Mode Rejection Ratio: 86 dB
• en – Input Voltage Noise Density: 18 nV/sqrt Hz
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• In – Input Noise Current Density: 0.01 pA/sqrt Hz
• Input Type: Rail-to-Rail
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 3.5 V
• Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
• Supply Type: Single, Dual
• Vcm – Common Mode Voltage: Negative Rail + 4 V to Positive Rail – 4 V
• Voltage Gain dB: 106.02 dB
• Mounting Style: Through Hole
• Package/Case: PDIP-14

Applications:

• Solar energy: string and central inverter
• Motor drives: AC and servo drive control and power stage modules
• Single phase online UPS
• Three phase UPS
• Pro audio mixers
• Battery test equipment

The TL08xx JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET, and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficients. This product is known as TL084CDRG4, TL084CPWE4, TL084CDG4, TL084CDR, TL084CPW, TL084CDE4, TL084CN, TL084QDR, TL084ID, TL084QD, TL084CD, TL084IN, TL084INE4.
