F550 / Q550 Hexa-Copter Frame, Landing Gears and Integrated PCB Kit

• Model: F550 / Q550
• Frame Weight: 550gm(including landing gear)
• Motor Mounting Hole Diameter: 3 mm
• Landing Gear Material: ABS
• Arm Size: 220 x 55 mm
• Landing Gear Length: 200mm
• Takeoff weight: 1200-2400 grams

This F550 / Q550 Quadcopter Frame is made from 35% of Glass Fiber which makes it tough and durable. They have arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

They are strong, light, and have a sensible configuration including a PCB (Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB and makes the mounting clean and neat.

Introducing our Made in India Drone Frame, meticulously crafted to ensure assured quality and exceptional compatibility surpassing other options in the market.

We at ROBU dedicatedly redesigned and fabricated these Drone Frame Parts using stronger materials with around 35% of glass fiber, addressing the longstanding issues related to durability and compatibility that were raised by our valued customers over time. We take immense pride in presenting you with a product that not only meets the utmost standards of performance and reliability but also comes at an incredibly affordable price. Experience the difference with our upgraded Drone Frame Parts and elevate your drone-building journey like never before.

Note:

1. The dimensions and weight may have ±5% error.
2. Refer to the attachments for schematics for Dimensional Details
3. To power up the drone, you can connect the battery terminals to one of the ESC points.

Features:

1. Made of advanced engineering material, super strong & smooth
2. Easy to assemble and disassemble.
3. The frame is tough and durable.
4. The main glass fiber frame has good strength.
5. The arm equips support ridges for better and faster forward flight.
6. Features pre-threaded brass sleeves.
7. Large mounting tabs for camera mounting.
8. In-built power distribution board.
9. Arm mounting holes: 3 mm.

Package Includes:

1 x F550 / Q550 Quadcopter Frame (Top and Bottom) with Integrated PCB.

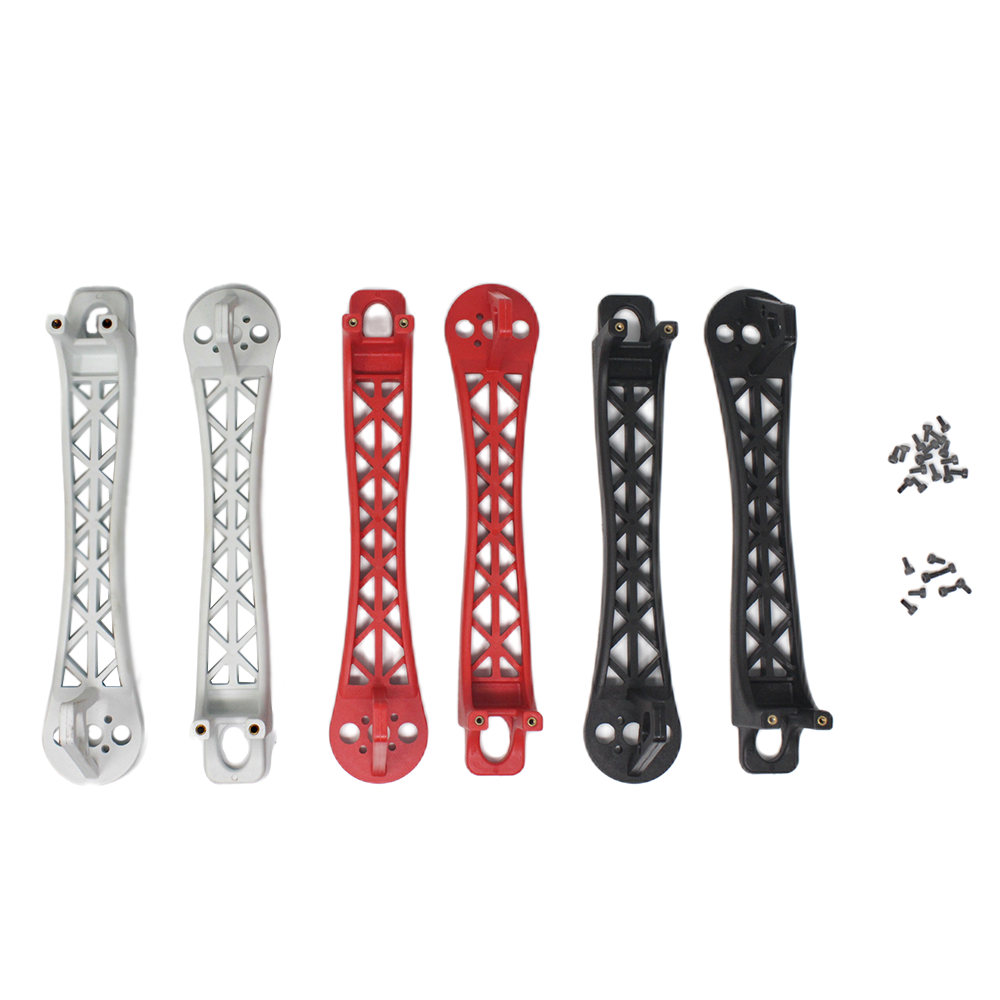

6 x F550 / Q550 arms (2 Red + 2 White+ 2 Black).
1 x Landing Gear
1 x Accessories set (24 x M2.5 * 5mm Screws)
