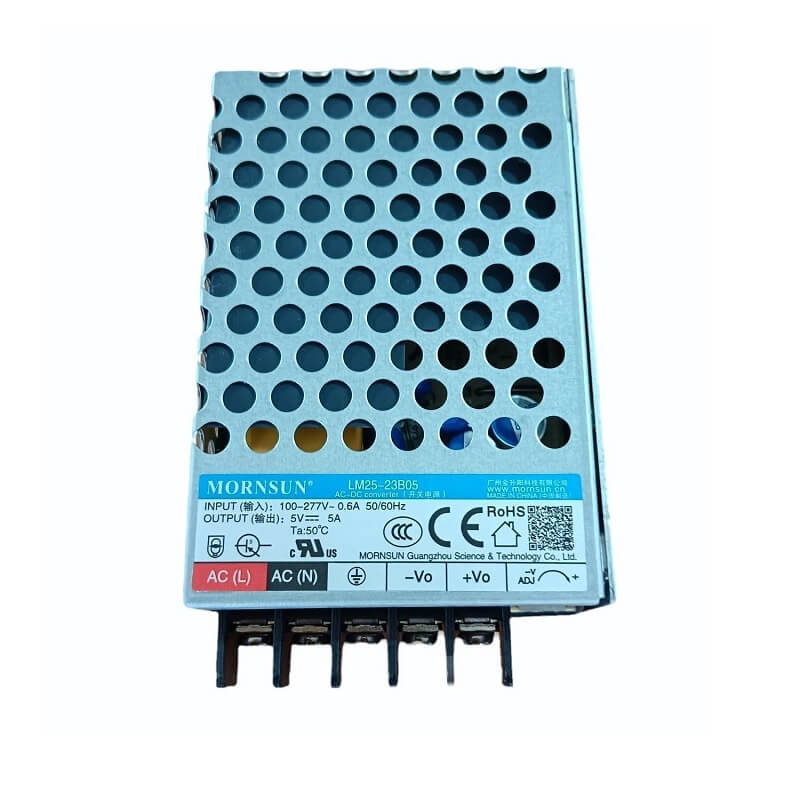

Mornsun LM25-23B05 – 5V 5A 25W SMPS AC to DC Switching Single Output Power Supply
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
- Warranty- 2 Years
- Manufacturer Product No: LM25-23B05
- Manufacturer: Mornsun
- Input Voltage Range: 100V ~ 277VAC
- Output Voltage: 5V
- Output Current: 5A
LM25-23B05 – 5V 5A 25W Industrial Power Supply – Mornsun. LM25-23B05 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMCperformance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used inareasofindustrial, LED, street light control, electricity, security, telecommunications, smart home etc. Tags, LM25-23B05 Mornsun SMPS – 5V 5A – 25W AC/DC Enclosed Switching Single Output Power Supply, 2725-LM25-23B05-ND, LM25-23B05 Mornsun SMPS Power Supply, 78%, Output Current: 5A, LM25-23B05 Mornsun SMPS Power Supply, For Industrial Automation, Output Voltage: 5VDC.
Features:
- 85 – 305VAC or 100 – 430VDC input voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -30℃to+70℃
- Up to 88% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltageprotection
- Over-voltage class Ⅲ(designed to meet EN61558)
- Operating altitude up to 5000m
Features/Specs:
- Manufacturer Product No:LM25-23B05
- Manufacturer: Mornsun America, LLC
- Series: LM25-23B05
- Type: Linear Regulator Replacement
- Number of Outputs: 1
- Input Voltage Range: 10VAC ~ 277VAC
- Output Voltage: 5V
- Output Current: 5A
- Power (Watts): 25 W
- Operating Temperature: -30°C ~ 70°C
- Efficiency: 88%
Size / Dimension
- Length: 80 mm
- Width: 55 mm
- Height: 25 mm
Applications:
- Digital Circuit
- Automation
- Power Supply
Datasheet: LM25-23B05
Package Includes:
- 1 x Mornsun LM25-23B05 – 5V 5A 25W SMPS AC to DC Switching Single Output Power Supply
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
