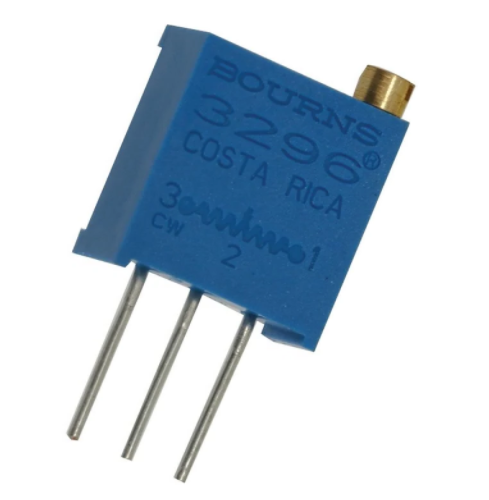

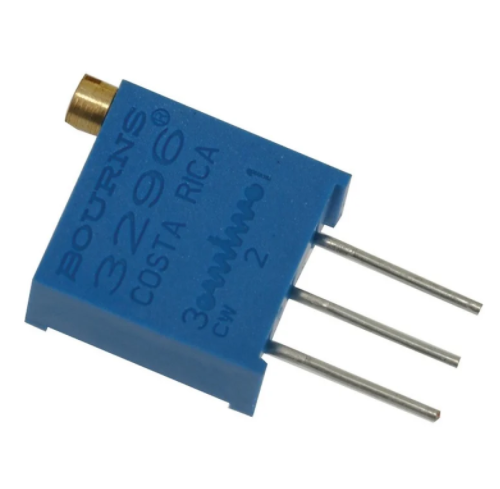

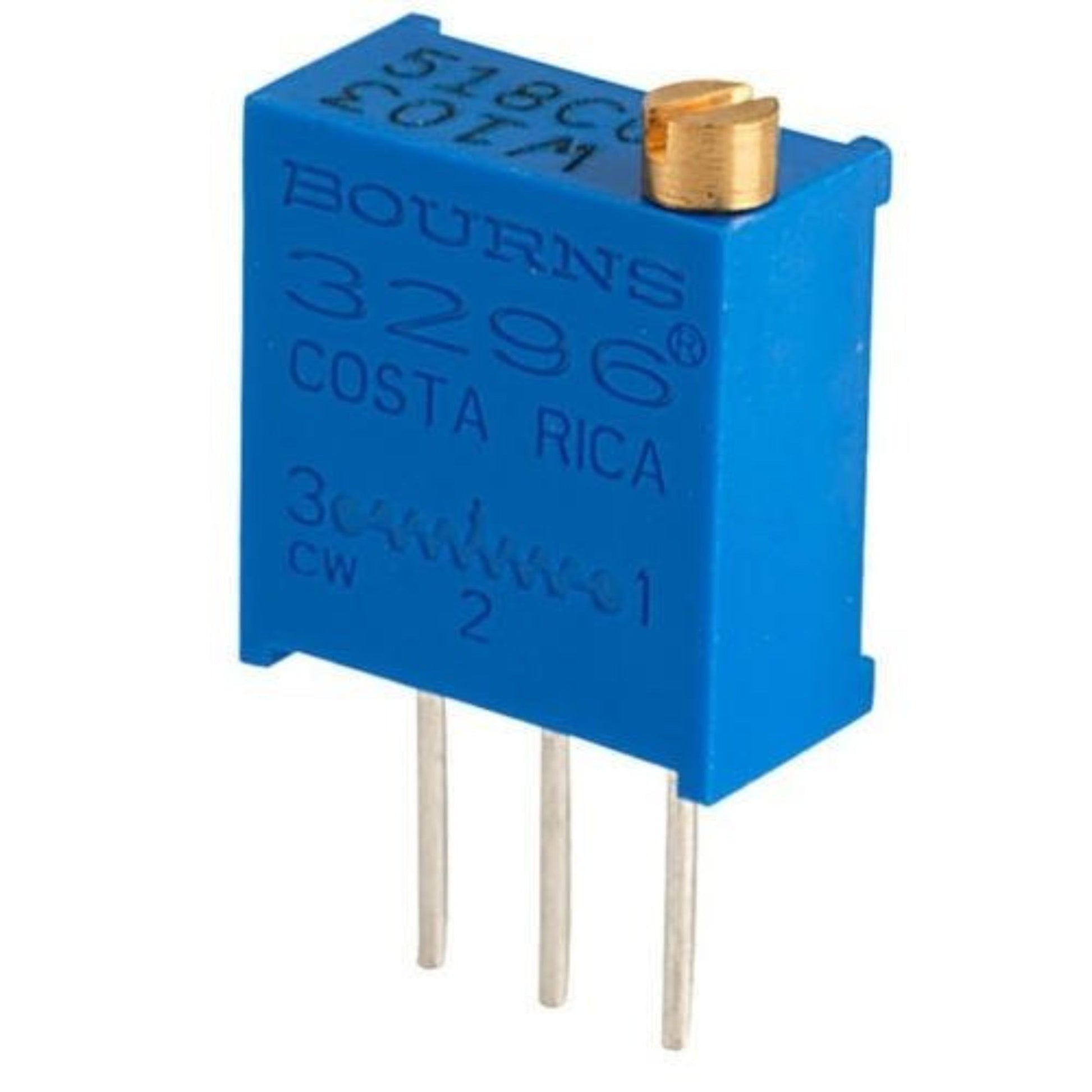

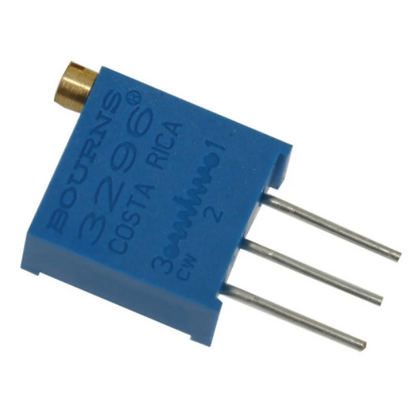

10K Ohm Trimpot Bourns 3296 Trimmer Potentiometer
Rs. 12.00
Rs. 15.00
All Prices Incuding GST
Save upto 28% in Input Credit
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance: 10K Ohms
--
Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Specification :
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance: 10K Ohms
- Power Rating: 500 mW (1/2 W)
- Termination Style: PC Pin
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
