APM2.8 ArduPilot Mega 2.8 APM Flight Controller Board w/ NEO M8N GPS w/ Bulit-in Compass for RC Multicopter

APM 2.8 Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone Aircraft is the new APM 2.8 flight controller. The sensors are exactly the same as the APM 2.6 flight controller, however, this has the option to use the built-in compass, or external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.

The universal vibration damping mount or shock absorber has a list of useful applications. This is free camera mounting to Flight controller isolation. It absorbs vibration, the center supported plate is ideal for sensitive electronics and cameras. The flush flat-bottom mounting allows bolt or tape style attachment.

A new generation Ublox GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy; support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more.

The GPS Folding Antenna Base mount comes will a laser cut adhesive pad to quickly attached your GPS module, while the mount itself can be fixed to your craft using the base plate M3 hole, or the cross slides.

Specifications and Features :
APM 2.8 Flight Controller :
Needle: straight.
Power supply: LP2985-3.3.
Max voltage: 16V.
Add a 47uF tantalum capacitor.
Port: MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
Arduino Compatible!
Includes 3-axis gyro, accelerometer, along with a high-performance barometer
Onboard 4 MegaByte Dataflash chip for automatic data logging.
Optional off-board GPS, a uBlox LEA-6H module with Compass.
One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.

NEO-M8N GPS Module :
Receiver type 72-channel u-box M8 engine.
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
SBAS L1 C/A: WAAS, EGNOS, MSAS.
Galileo-ready E1B/C (NEO-M8N).
Nav. update rate1 Single GNSS: up to 18 HZ.
Concurrent GNSS: up to 10 Hz.
Position accuracy2 2.0 m CEP.
Acquisition2 Cold start: 26 s.
Aided starts: 2 s.
Reacquisition: 1.5 s.
Sensitivity2 Tracking & Nav: –167 dBm.
Cold start: –148 dBm.
Hot starts: –156 dBm.
Assistance AssistNow GNSS Online.
Assist Now GNSS Offline (up to 35 days)3.
Assist Now Autonomous (up to 6 days).
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q).
Crystal (NEO-M8M).
RTC crystal Built-In.
Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
lowest noise figure (NEO-M8N/Q).
Anti-jamming Active CW detection and removal.
Extra onboard SAW bandpass filter (NEO-M8N/Q).
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
Supported antennas Active and passive.
Odometer Travelled distance.
Data-logger For position, velocity, and time (NEO-M8N).
GPS Folding Base Antenna set :
Material: CNC Aluminum alloy, carbon glass fiber rod
Mounting rod diameter: 4mm
length of rod: 14 cm.
GPS plate diameter: 40 mm.
Base plate diameter: 35 mm
Mounting hole spacing: 16-35mm
Weight: 20g
Colour: Anodised black
Note: Adhesive Pad is not included.

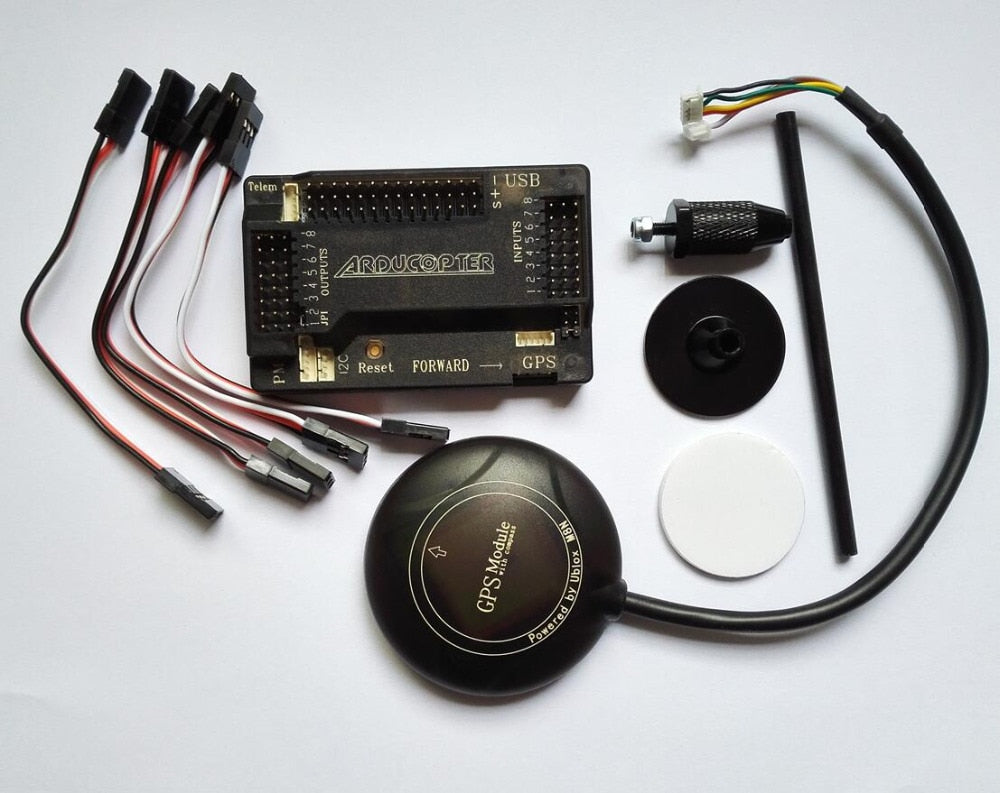

Package Includes :
1 x APM 2.8 Flight Controller.

2 x Connecting Wires.

1 x NEO-M8N GPS Module with translucent Shell.

1 x GPS Folding Base Antenna set.

1 x APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0.
