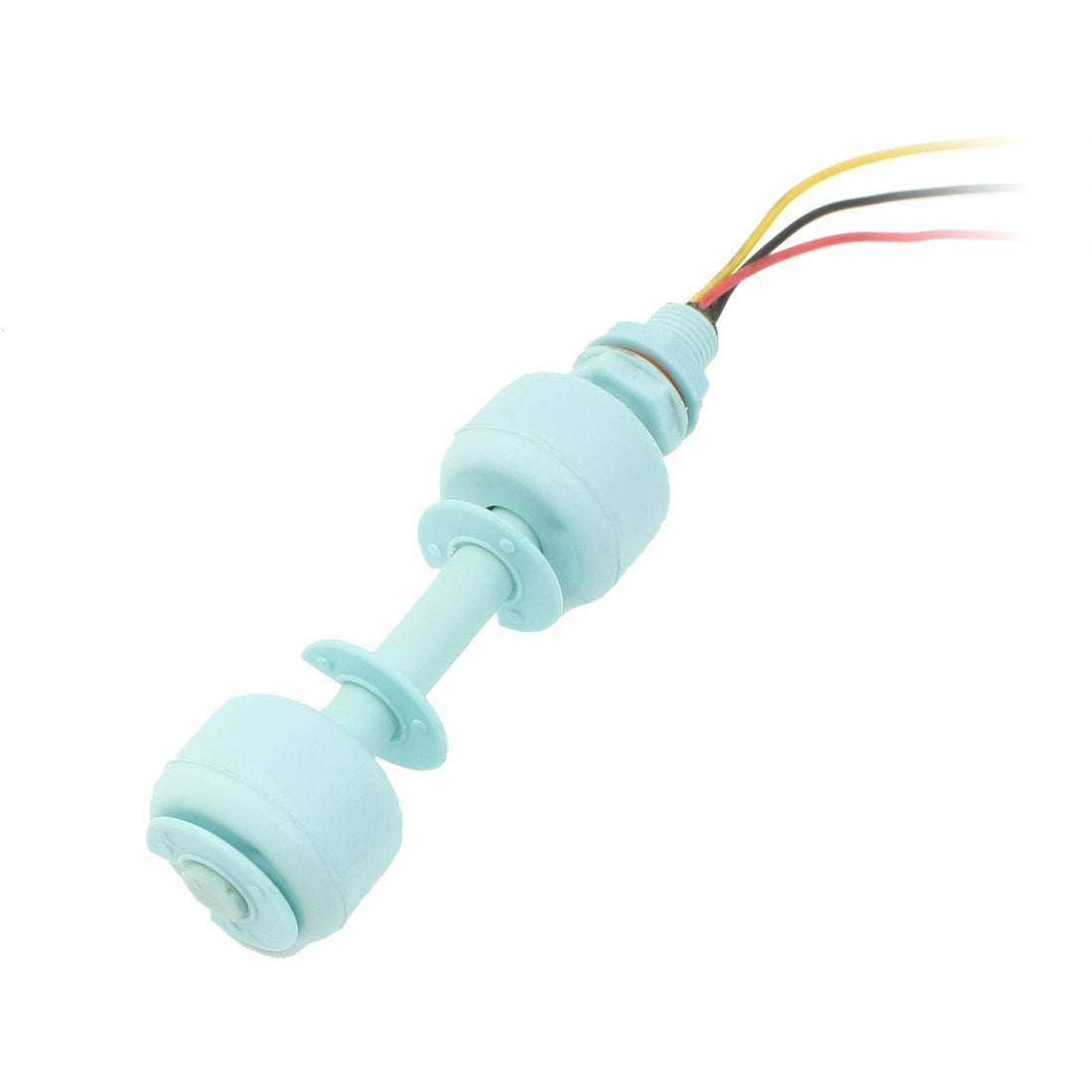

FS3 - Dual Plastic Float Sensor Switch
Subcribe to back in stock notification
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Product Name : Float Switch;
Contacts : NO+NC;
Max Contact Rating : Max Contact Rating; 10W : 10W;
Max Switching Voltage : 100V DC
--
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.It can be easily converted from normally open to normally close by inverting the float.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here
Max Switching Current : 0.5A; Max Breakdown Voltage : 220V DC; Max Carry Current : 1.0A; Max Contact Resistance : 100m?
Temperature Rating : -10 ~ +60 °C / 85 °C; Float Ball Material : PP; Float Body Material : PP; Float Ball Size(Approx.) : 17 x 26mm / 0.67" x 1.1"(L*D)
Thread Dia(Approx.) : 9.7mm / 0.37"; Nut Dia(Approx.) : 14mm / 0.55"; Bottom Clip Dia(Approx.) : 20mm / 0.81"; Body Total Length : 10cm / 3.9
Cable Length : 41cm / 16.1"; Color : Cyan; Net Weight : 25g; Package Content : 1 x Float Switch
