Tower Pro MG996R (180) Metal Gear Servo Motor 180 Degree Rotation

1. Weight: 55g
2. Dimension: 40.7×19.7×42.9mm
3. Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
4. Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
5. Operating voltage: 4.8 ~ 6.6V
6. Gear Type: Metal gear
7. Dead band width: 1us
8. Wire length: 32cm
9. Servo Plug: JR (Fits JR and Futaba)
10. Servo arms & screws included, and fit with Futaba servo arm
11. It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec , GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
12. CE & RoHS approved

This is the upgraded model of the MG995 servo. MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project. This motor generates a massive 15kg.cm torque. We have carefully selected this servo motor for the and performance among the numerous similar motors available in the market.

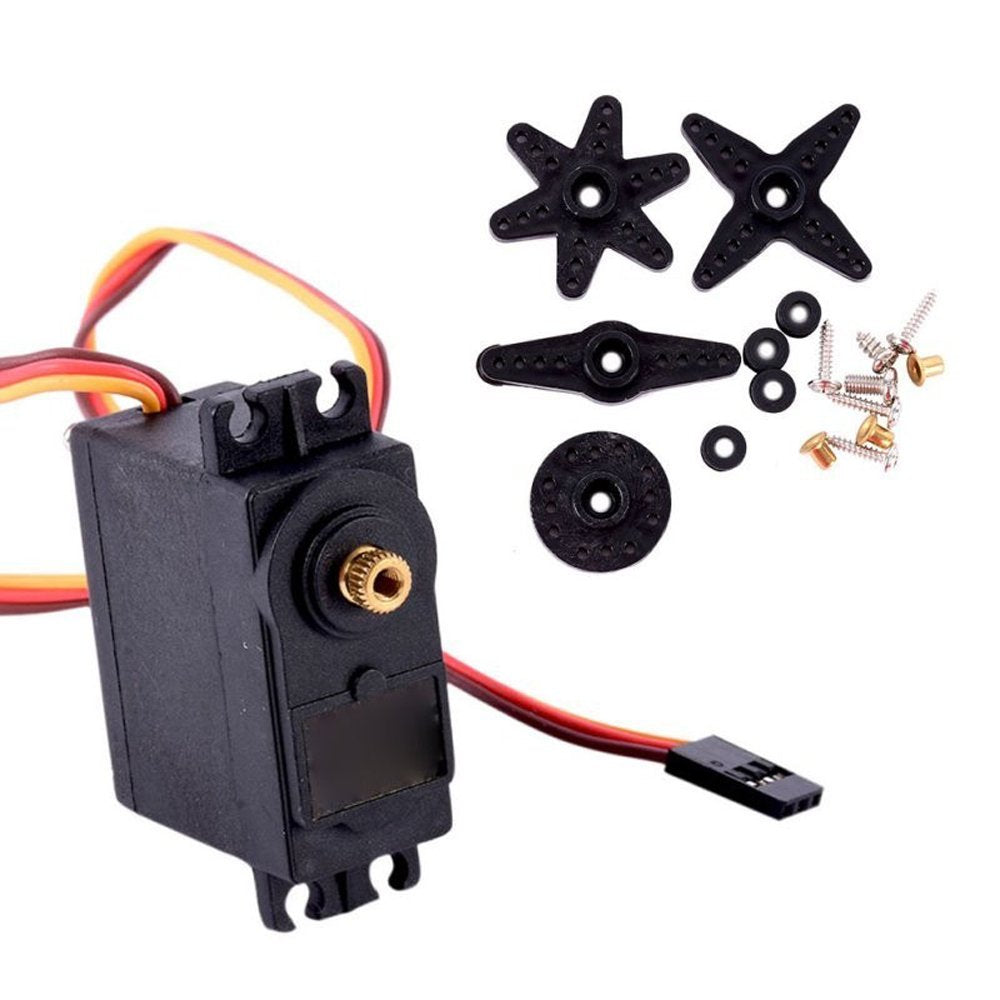

It comes with a 3-pin power, control cable and mounting hardware.

Wire Configuration :
RED – Positive
Brown – Negative
Orange – Signal (PWM)

Features:

• Servo Size: 41mm x 20 x 43mm
• Weight: 55g
• Metal gear hight torque
• Double ball bearing design
• Stall Torque: 4.8V - 13kg/cm, 6.0V - 15kg/cm
• No Load Operating Speed: 4.8V - 0.17sec/60, 6.0V - 0.14sec/60
• Dead band width: 5 microseconds
• Operating voltage: 4.8V - 6V
• Temperature range: 0- 55 30cm 3pin connector wire.
